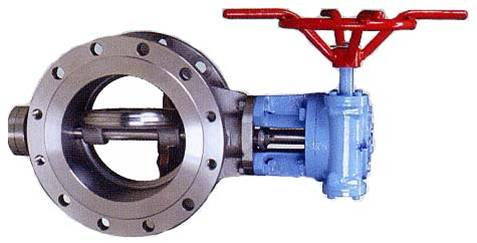

METAL SEATED BUTTERFLY VALVE
( TRIPLE OFFSET DESIGN ) |
|
| |
| FEATURES |
: |
ZERO LEAKAGE, LOW TORQUE, LESS WEAR & TEAR |
|
| APPLICATION |
: |
STEAM, LNG, N2, CRYOGENIC, SEA WATER, CHEMICALS |
| ENDUSERS |
: |
OIL & GAS, LNG, POWER PLANTS, WATER WORKS |
| BODY DESIGN |
: |
WAFER, BUTT-WELD, DOUBLE FLANGE, LUG TYPE |
| PRESSURE |
: |
ANSI 150 ~ 1,500 |
| TEMPERATURE |
: |
- 196 ~ 800 C |
| SIZE |
: |
3” ~ 160 ” ( 80 ~ 4,000 mm ) |
| DESIGN |
|
ANSI 16.34, API 609, DIN 3840 |
| FACE TO FACE |
|
API 609, ISO 5752, ANSI B 16.1,
DIN 3203 |
| FIRE SAFE |
|
API 607, API 6 FA, BS 6755 |
| TEST |
|
API 598 & 6D, ISO 5208 |
| APPROVAL |
|
ISO 9001, API, CE, EPA |
| MARKING |
: |
MSS SP-25 |
| |
|
|
